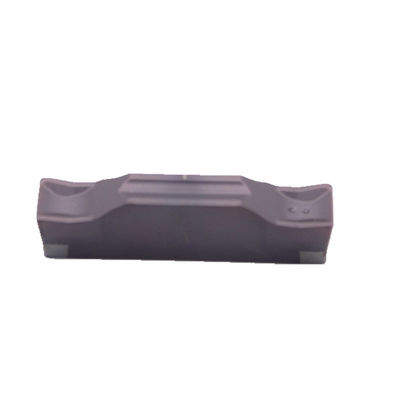

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ

Large Image : Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ

Product Details:

Place of Origin:	Sichuan,China
Brand Name:	CDQ
Model Number:	TDC&TDJ series

Payment & Shipping Terms:

Minimum Order Quantity:	10PC
Packaging Details:	10pcs in one box inside; foam with carton outside
Delivery Time:	3-5 work days
Payment Terms:	T/T, Western Union, MoneyGram,
Supply Ability:	100000pcs/month

Contact Now

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ

Description

Packaging Details ::	Insert Box And Bubble Wrap And Carton Box	Hardness::	HR10-45
Coating::	TiAlN	Workpiece::	Steel\ Stainless\cast Iron
Performance:::	Metal Cutting	Customized Support::	OEM, ODM
Raw Material::	Tungsten Carbide	Type::	Parting Off
High Light:	TDC Parting Off Inserts , Carbide Parting Off Inserts , TDJ CNC Lathe Tools

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ

Product Name: Tungsten Carbide inserts

Place Of Origin: Sichuan, China (Mainland)

Hardness: HR10-40
Material: 100% Virgin Tunsten Carbide

Coating: PVD,TIAN

Size: Drawing Provided

Appearance: Polishing

High Light: carbide wear parts, tungsten carbide inserts

Customize: Acceptable

Package: Standard Export Packing

1. Excellent chip control & perfect turning surface

2. Less tool breakage, cost down of each componen

3. Stable and extended tool life in continuous and interrupted cutting operations

Model no:TDC series

TD-External grooving and parting insert
model			(mm)dimensions
			W			r			L			H		T				B
TDC/T/J-2			2.0			0.2			20			3.9		1.7				2
TDC/T/J-3			3.0			0.2			20			4		2.4				3
TDC/T/J-4			4.0			0.3			20			4.05		3				4
TDC/T/J-5			5.0			0.3			25			4.89		4				5
TDT- 2345 TDJ-2345
model				insert			(mm)dimensions
							Tmax			h/H/W			l			Screw			torx
TTER/L		1616-2		TD**2			14			16			110			M5*16			L4
		2020-2								20			125
		2525-2								25			150
		1616-3		TD**3			18			16			110			M5*16			L4
		2020-3								20			125
		2525-3								25			150
		2020-4		TD**4			18			20			125			M6*16			L5
		2525-4								25			150
		2525-5		TD**5			23			25			150			M8*20			L6
		3232-5								32			170
TTIR/L	25-2C				5			25			40		200		25		M5*8-16			LW4
	20-3C		TD*3		6			25			40		160		20		M5*8-12			LW4
	25-3C				5			25			40		200		25		M5*8-16			LW4
	32-3C				5			31			60		250		32		M5*8-16			LW4
	20-4C		TD*4		6			25			40		160		20		M5*8-12			LW4
	25-4C				5.2			25			40		200		25		M5*8-16			LW4
	32-4C				4.7			31			60		250		32		M5*8-16			LW4
	25-5C		TD*5		5.2			31			40		200		25		M6*1-16			LW5
	32-5C				4.7			31			60		250		32		M6*1-20			LW5

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ 0

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ 1

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ 2

Grooving And Carbide Parting Off Inserts For CNC Lathe Tools TDC&TDJ 3

FAQ:

Q: Why customers choose us?

A: Competitive price,high quality,fast delivery,patiently pre-sales consultation and perfect after-sales service. And we are manufactures ,have our own factory ,we can Guarantee our quality.

Q: What's the MOQ?
A: Usually MOQ is one box,10 pcs/box, some special is 5 pcs/box or 2 pcs/box.


Q: How long is your delivery time?

A: Generally 3-7 work days if the quantity 1-500 pcs,more than 500 pcs,need to negotiate.

Q: How does your factory to control quality?

A: Quality is priority. we will do 100% quality inspection before shipment.

Q: What is payment method?

A: Normally T/T, Western union,Pay pal ,Credit card.

Q: Do you accept trial order?

A: Yes, u can order with small amount to test.
